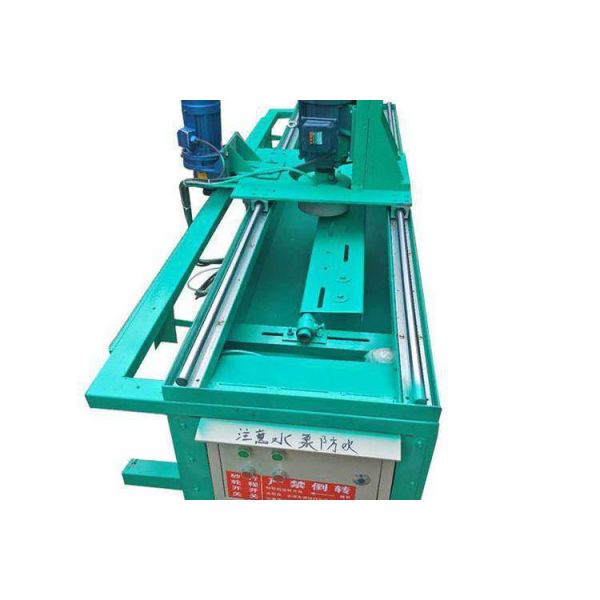

Blade Sharpener Machine Description:
The machine adopts double-layer national standard profile steel plate welding and vibration failure treatment. It is equipped with ultra-strong electromagnetic chuck. Put the blade on the workbench and open the chuck switch. The blade will be firmly adsorbed on the workbench, saving the time of pressing the blade with bolts. The blade grinding is smoother, and the straightness is better. In the process of installing the blade grinding, you can carry out grinding wheel grinding compensation by yourself without personnel to realize automatic grinding, saving about 40 minutes of labor.
Knife Grind: Precisely sharpens long knives up to 1500mm.
High-Strength Body: Durable gantry body for long-lasting performance.
Electromagnetic Chuck: Easy and convenient knife clamping.
Adjustable Worktable: Flexible angle adjustment for optimal sharpening.
Inverter Control: Smooth horizontal and vertical grinding head speed adjustment.
Blade Sharpener Machine Specification:
| knife grinding |
| Model |
HT1500 |
HT3000 |
| Max working length |
1500mm |
3200mm |
| Max cutting width |
200mm |
200mm |
| Wheel rotation rate |
1400r/min |
1400r/min |
| Wheel diameter |
200-250mm |
200-250mm |
| Total power |
6.47kw |
6.47kw |
| Tilting angle of saw blade |
0-45degree |
0-45degree |
| Adjusting angle of magnetic chuck |
±90 degree |
±90 degree |
| Overall dimensions |
3800*1250*1300mm |
6500*1250*1300mm |
| Net weight |
2300kg |
3400kg |
Blade Grinder Advantage:
1. Widely used for all type of long knives, like peeling machine knife, Granulator knife,cutting paper knife ,Shearing Blades, sliceing knives etc.
2. High-quality steel weld ,high strength and rigidity.
3. The worktable use the electro magnetic chuck, so it's convenience to clamp knife.
4. Easy to adjust the angle by worm gear.
5. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
